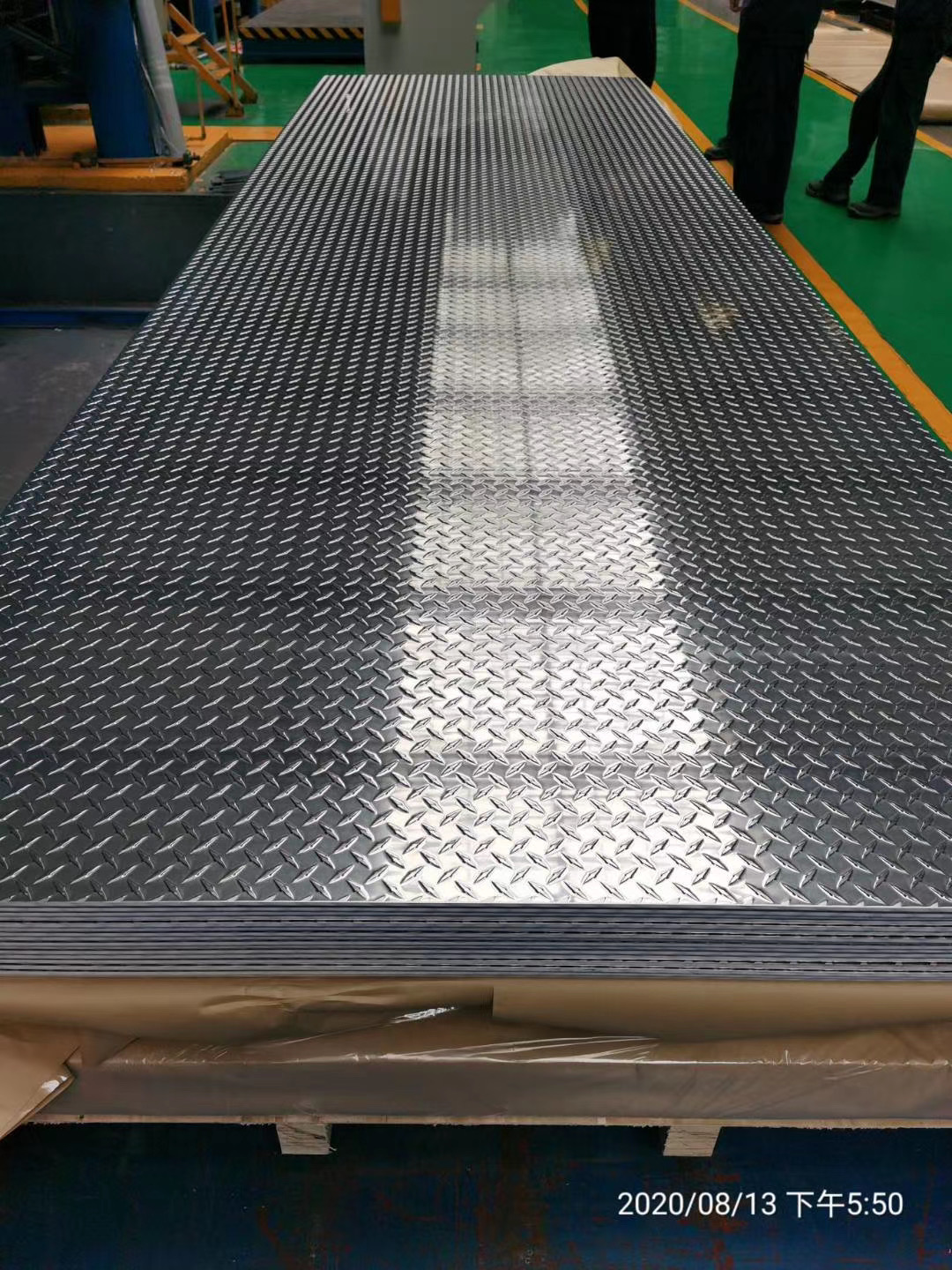

Embossed Aluminum Plate
Share This Product:
DESCRIPTION
Different customers have different callings for the embossed sheets, such as Aluminum Tread Sheet, Checkered aluminum plate ,non-slip aluminum plate, Diamond embossed sheets, Aluminum Five Bar Tread Plate etc. Some kinds of Stucco Embossed aluminium sheets are usually used in refrigerators, air conditioners and refrigeration equipment, and pipe insulation, the products have good thermal conductivity, heat dissipation due to the special nature of the pattern.

Specifications of Embossed Aluminum Sheet
1. Grade:
1) 1000 Series: 1050 1060 1070 1100 1200 1235 etc.
2) 2000 Series: 2014 2024 etc.
3) 3000 Series: 3003 3004 3005 3104 3105 3A21 etc.
4) 4000 Series: 4045 4047 4343 etc.
5) 5000 Series: 5005 5052 5083 5086 5154 5182 5251 5454 5754 5A06 etc.
6) 6000 Series: 6061 6063 6082 6A02 etc.
7) 7000 Series: 7005 7075 etc.
8) 8000 Series: 8006 8011 8079 etc.

2. Thickness:0.20mm-3.0mm
3. Width: 300-1200mm
4. Temper: all available, H1X, H2X, H3X, O, HXXX TX
  • Aluwedo Aluminum Embossed Sheet
  • Aluwedo Aluminum Embossed Sheet
  • Aluwedo Aluminum Embossed Sheet
  • Aluwedo Aluminum Embossed Sheet
Applications of embossed Aluminum Sheet
1) Aircraft, automobile, train
2) Building wall, ceilings, roofing, furniture cabinet, lighting plate
3) Shipping plate, solar reflective plate,Corner protector, insulation material
4) Beverage bottle, cap, ring-pull, cosmetics shell and cover
5) Aluminum tread/embossed plate, quenched and pre-stretched plate
6) PS baseplate, CTP baseplate, Signs, nameplate
7) Electrical products shell, engineering machinery plate
8) Aluminum reefer containers and special containers, etc
9) Spinning, Auto etc.
  • Aluwedo Aluminum Embossed Sheet
  • Aluwedo Aluminum Embossed Sheet
  • Aluwedo Aluminum Embossed Sheet
  • Diamond Aluminum Plate

Chemical Composition(%)

Grade

Si

Fe

Cu

Mn

Mg

Cr

Zn

Al

1060

0.25

0.35

0.05

0.03

0.03

-

0.05

99.6

3003

0.6

0.7

0.05-0.2

1.0-1.5

-

-

0.1

remains

5005

0.3

0.7

0.2

0.2

0.50-1.1

0.1

0.25

remains

8011

0.50-0.9

0.6-1.0

0.1

0.2

0.05

0.05

0.1

remains

Packaging & Shipping
1. Standard seaworthy exporting carton.
2. Wooden pallets on the bottom.
3. Waterproof plastic package.
SPECIFICATION

Shape

Aluminum coils or sheets

Process

Mill finish, Coated, Embossed, Mirror, Brush etc

Width

200-1200mm

Thickness

0.2mm-5mm

Pattern

Diamond, Stucco, Orange peel, Hammered etc

PE Thickness

Over 18 micron

PVDF Thickness

Over 25 micron

Package Weight

200-2000kg per package

Technology

Hot rolling, cold rolling

Delivery

10-15 days after payment according your order

Samples

Free

Usage

Decoration of wall, floor of car, boat etc

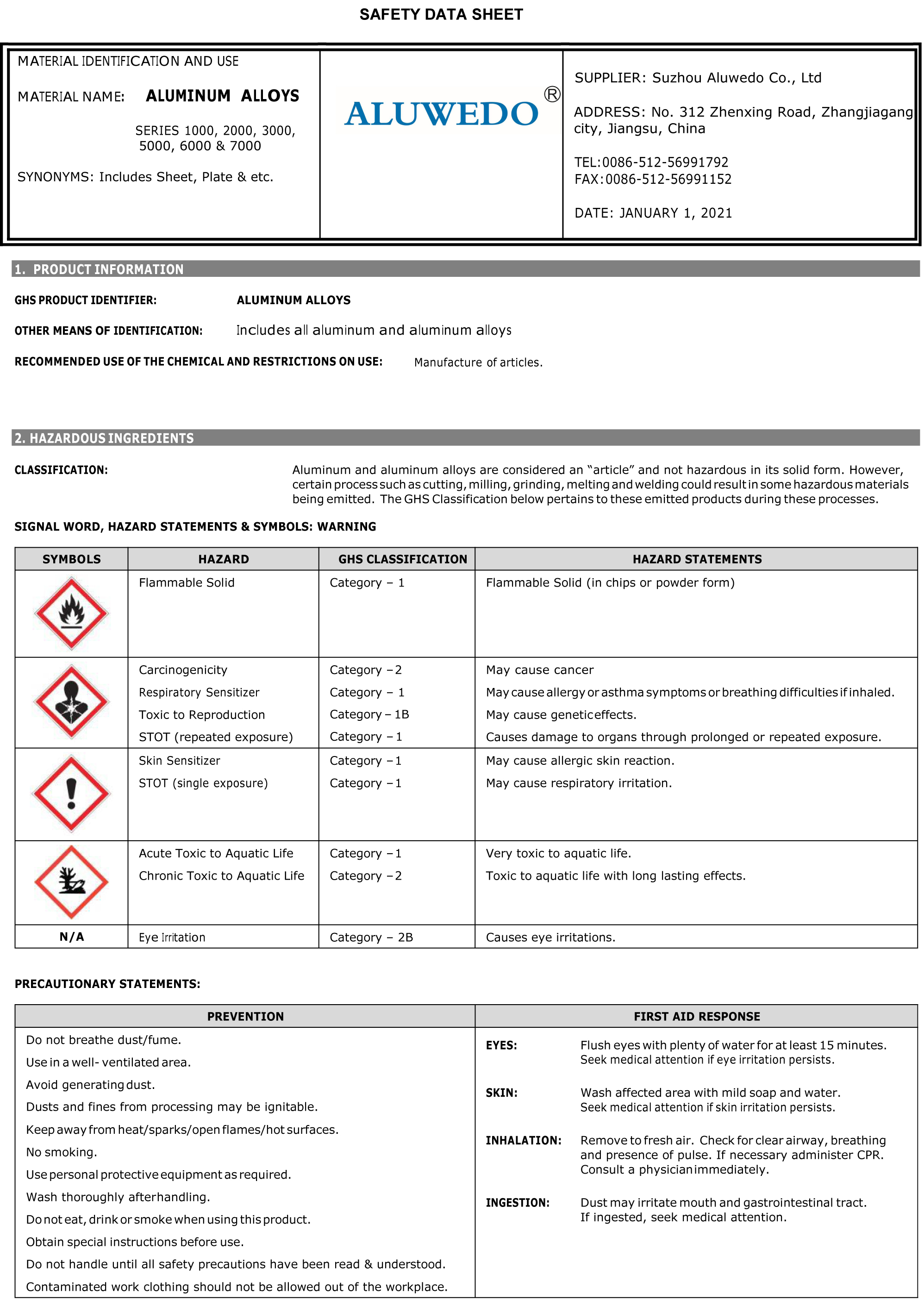

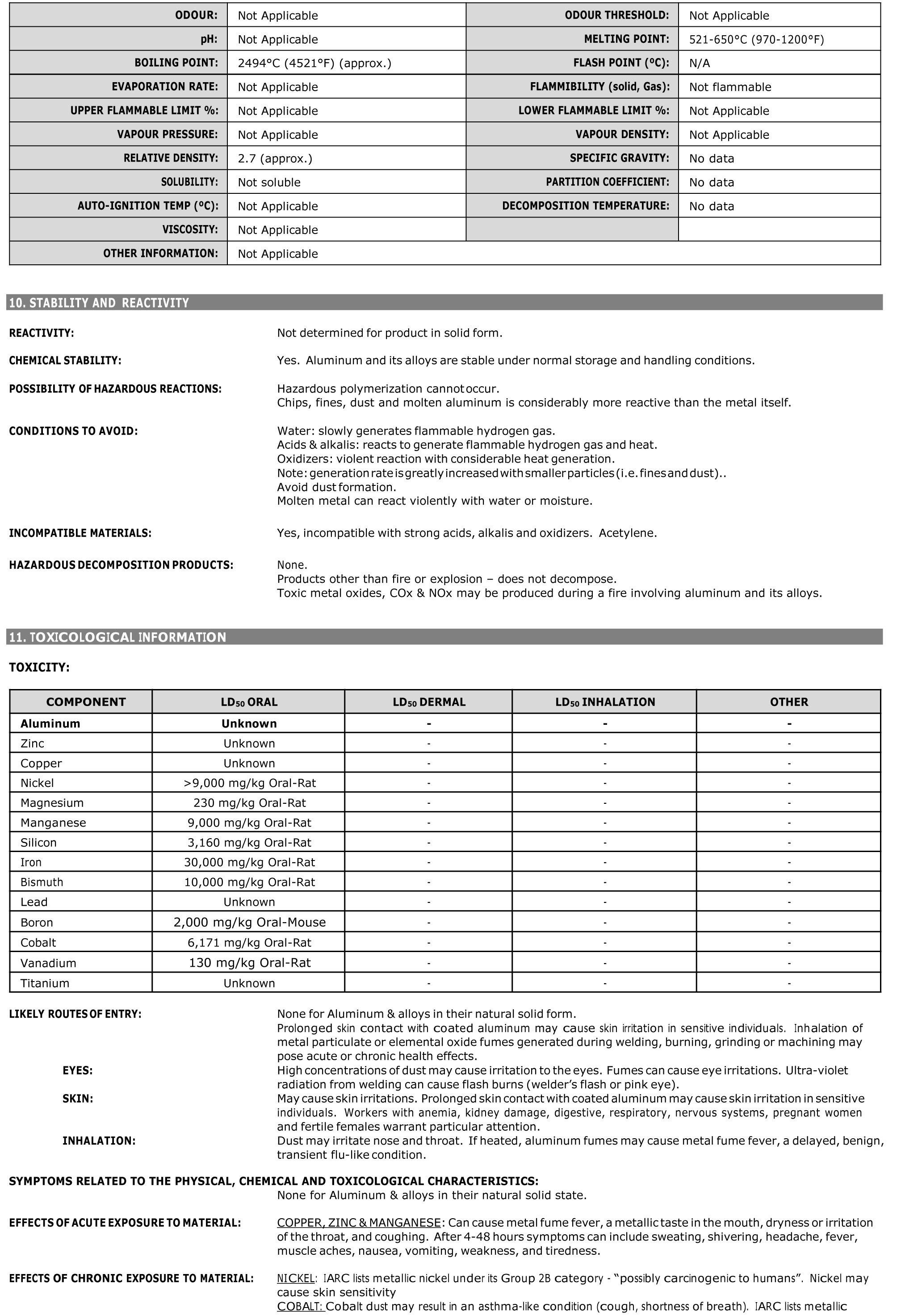

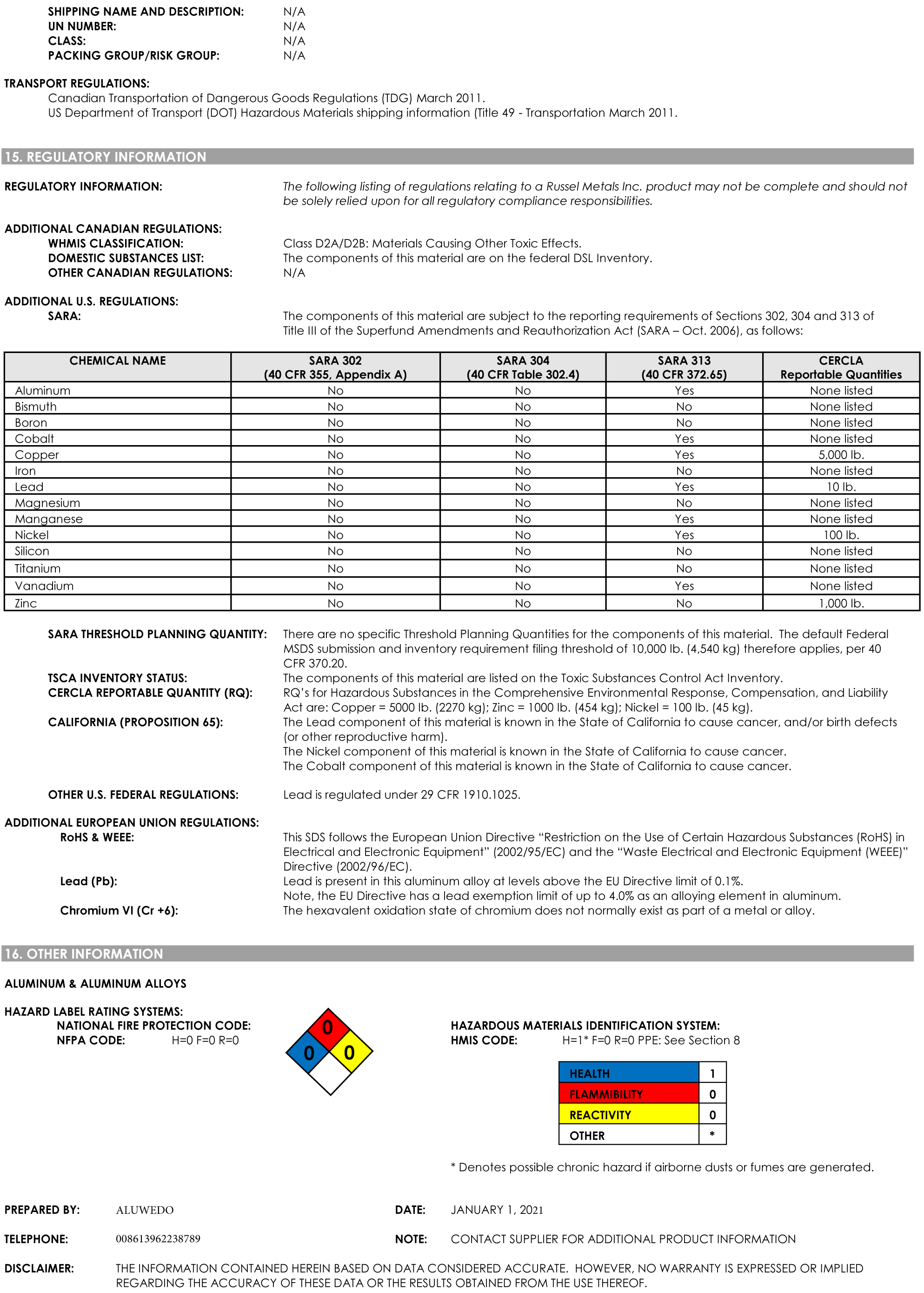

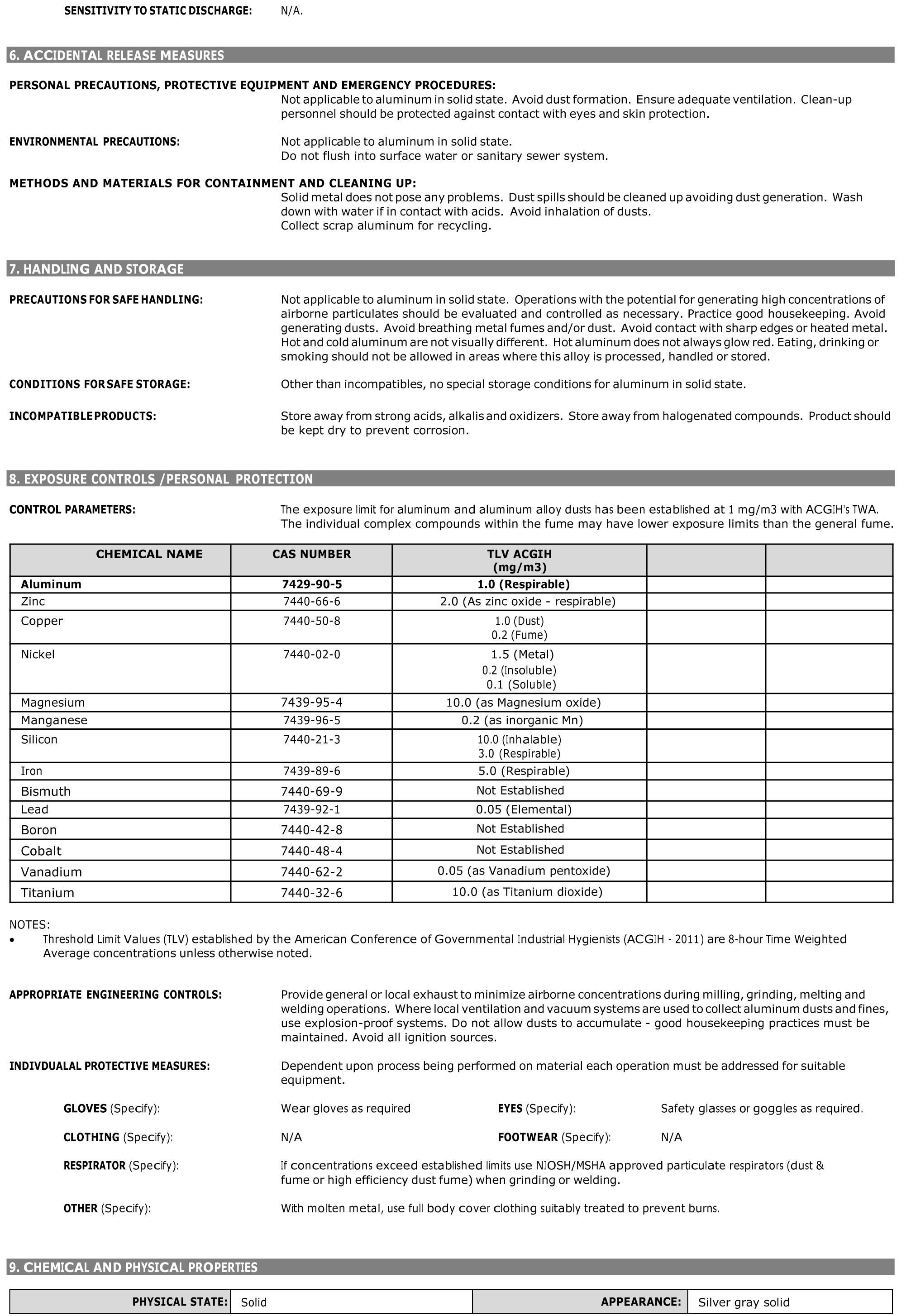

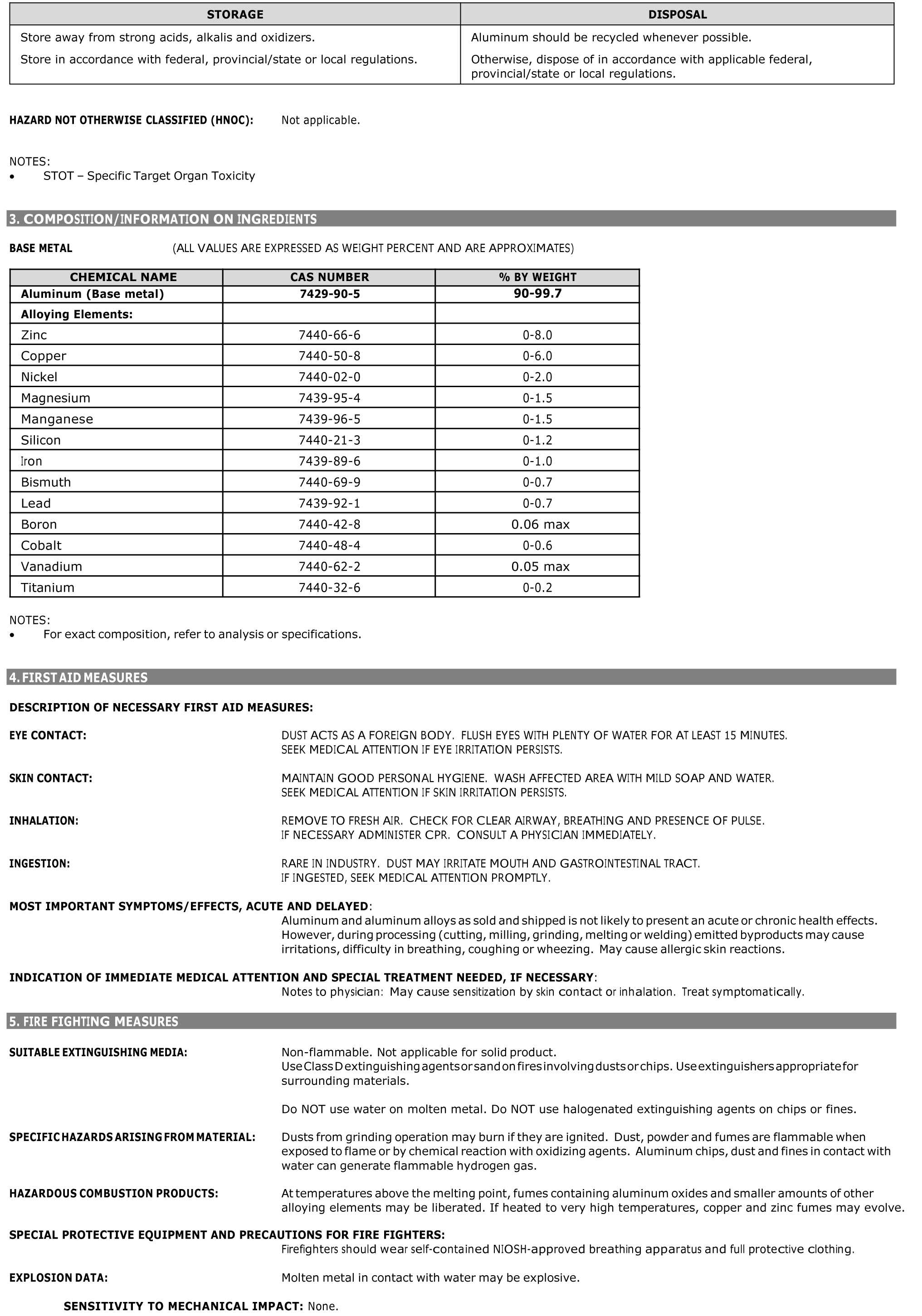

MSDS ALUMINUM DATA
ALUMINUM FLOORING ANTI-SLIP EMBO S SED SHEET PLATE

Details of  Aluminum Anti-slip Plate

  • Grade:1000,3000,5000,6000,etc.
  • Temper: H30,H114,H22.H24,F,O,T4,T6,etc.
  • Thickness: 0.8mm-8mm
  • Aluminum Checkered Plate With Diamond, Bar, Pointer Patterns      *   Big 5 bars     *   Small 5 bars     *   Diamond     *   3 Bar     *   Pointer etc.   Application for Aluminum Checkered Plate: mainly used insigns, billboards, building exterior decoration, bus body, high-rise buildings and factories wall decoration, kitchen sink, lamp, fan leaves, with pieces of electronic, chemical equipment, Specifications can be customized as the customer’s requirements

Features & Application Of Aluminum Checkered Plate

  • Light weight transport sector is required,disassembling,convenient assembling,the best comer of an aluminum alloy step. Increase the energy-saving effect.

  • 1.Vehicle Characteristics and benefits: light weight transport sector is required, the best comer of an aluminum alloy step. Increase the energy-saving effect. Applications: checkered plate floor, such as van-type vehicle catwalk flooring, wood step of the bus or truck, train inspection hole lid, tank car, the car cold storage.

  • 2.Ship Characteristics and benefits: because the excellent corrosion resistance in seawater, requires no resistance such as repainting. It can be used with confidence for many years. Applications: corridor and bridges over the lid and floors,stairs,cabin deck,fish tank,gangway to the floating dock,architecture. Characteristics and benefits: corrosion resistance of the step corner has been utilized shopping and tourist attractions that require aesthetics, such as collective for many years. Applications: floors, stairs, shelves, such as gutter lid, the bicycle.

  • 3.Plant Characteristics and benefits: harmless because it is also suitable for container species,such as facilities and chemical plants and food plant is excellent in chemical resistance. Applications: bench floor and stairs, equipment,plant machinery,such as ambulatory inspection.

  • 4.Other Uses Characteristics and benefits: because it has many excellent characteristics. Not only as a materials step, has also been used in the case and ornaments. Applications: such as a deck ladder,ladder,showcase, temporary scaffolding,the structure of marine.
